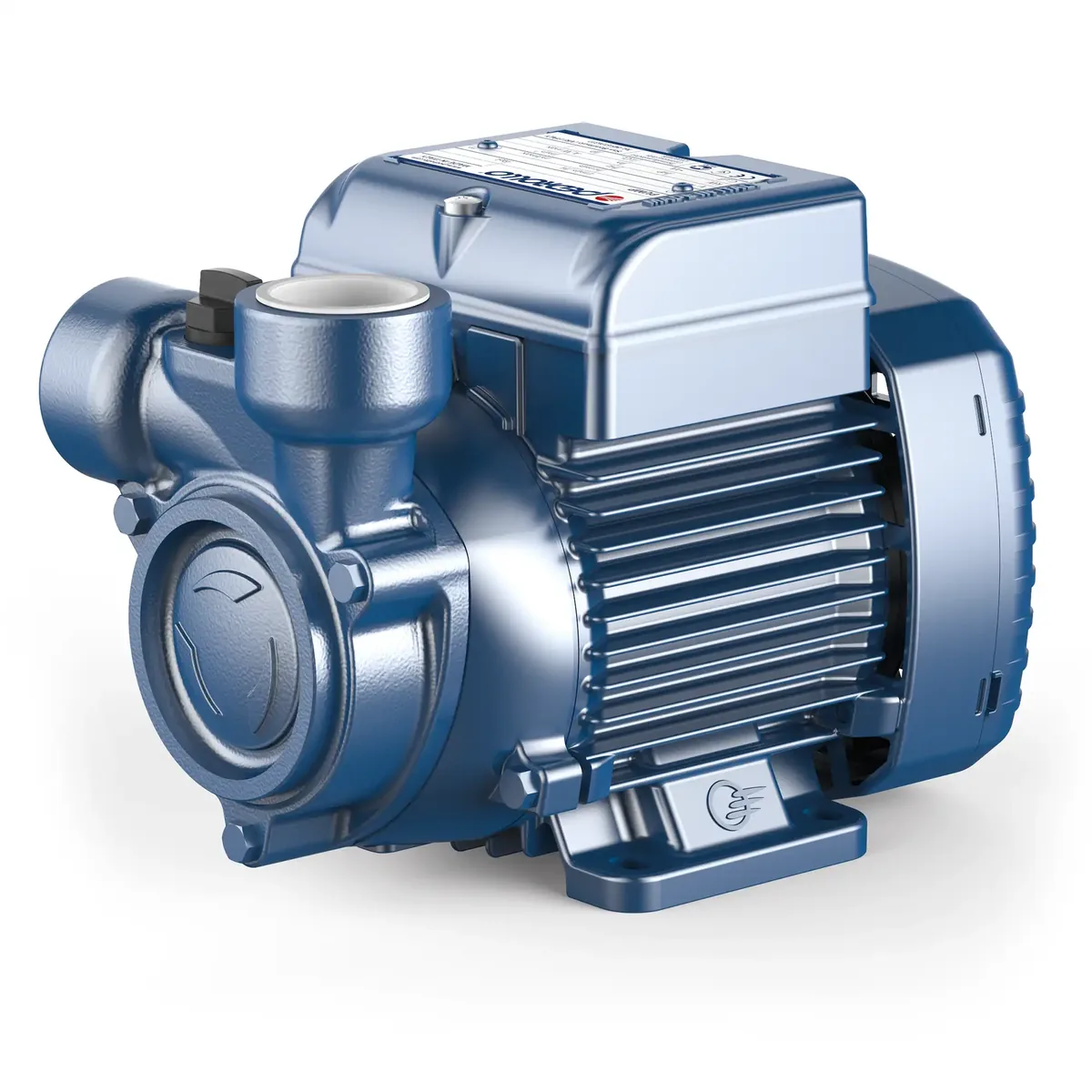

Pedrollo PQ
- Model
- Pedrollo PQ
Peripheral impeller pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo PQ
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Ambient Temperature
- up to +40 °C (+50 °C for PQ 60 and PQ61)
- Flow Rate
- up to 90 l/min (5.4 m³/h)
- Head Up
- up to 100 m
- Impeller
- Brass
- Ingress Protection Rating
- IP X4
- Liquid Temperature
- between -10 °C and +60 °C
- Manometric Suction Head
- up to 8 m
- Maximum Working Pressure
- – 6 bar for PQ 60, PQ 61, PQ 65 – 7 bar for PQ 80 – 10 bar for PQ 90, PQ 100, PQ 200, PQ 300
- Motor
- 2 poles
- Motor Bracket
- Aluminium with brass cover
- Pump Housing
- Cast iron
- Shaft
- Stainless steel AISI 431Stainless steel AISI 430F (for PQ 60, PQ 61, PQ 65)
