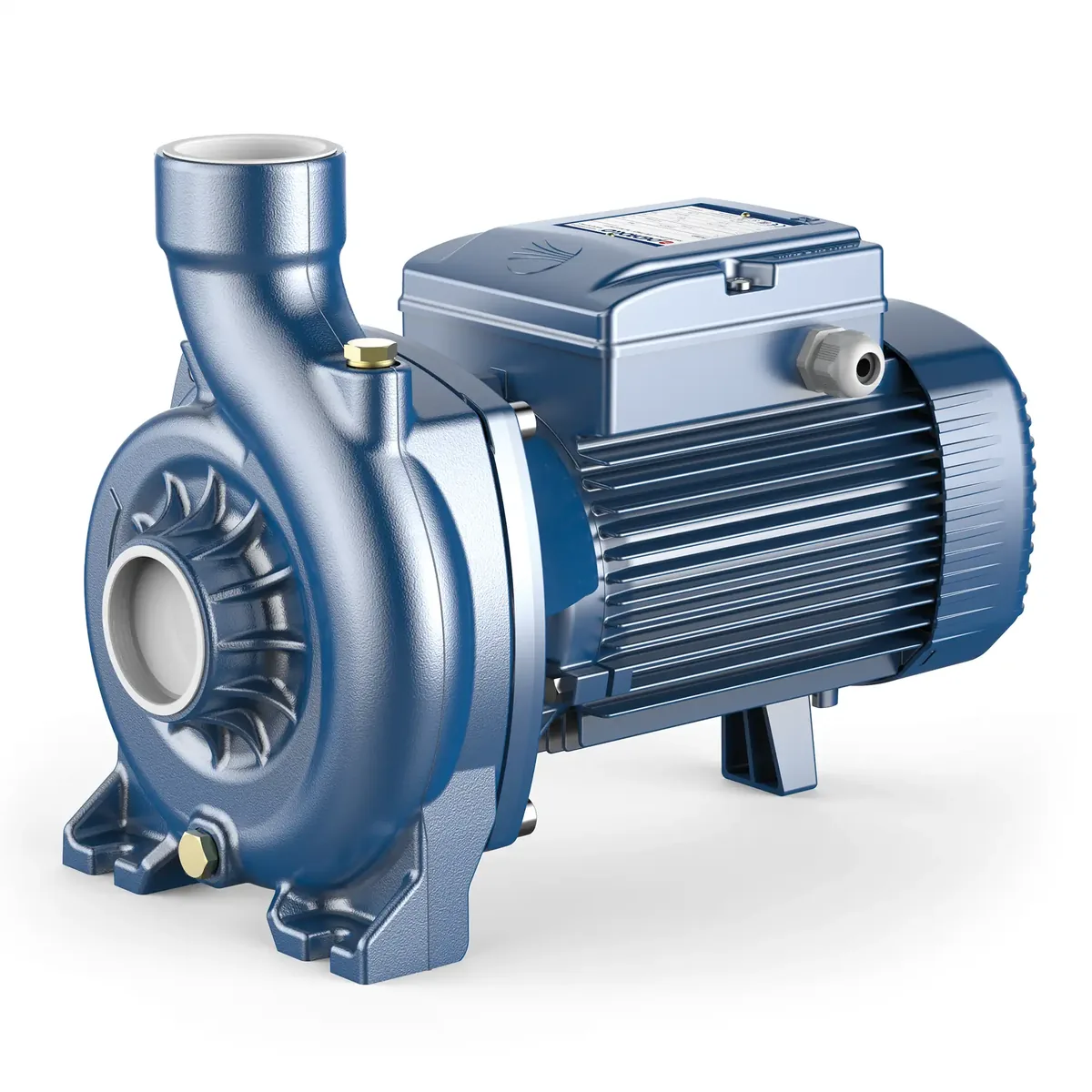

Pedrollo NGA
- Model
- Pedrollo NGA
Centrifugal pumps with open impeller
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo NGA
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Ambient Temperature
- between -10 °C and +40 °C
- Capable Of Processing Suspended Solids
- – up to Ø 12 mm for NGA1-2 – up to Ø 20 mm for NGA3
- Flow Rate
- up to 900 l/min (54 m³/h)
- Head Up
- up to 20.5 m
- Impeller
- Cast iron
- Ingress Protection Rating
- IP X4
- Liquid Temperature
- between -10 °C and +90 °C
- Manometric Suction Head
- up to 7 m
- Maximum Working Pressure
- – 6 bar for NGA1-2 – 10 bar for NGA3
- Motor
- 2 poles
- Pump Cover
- Cast iron JL250 for NGA3 Stainless steel AISI 304 for NGA1-2
- Pump Housing
- Cast iron JL250
- Shaft
- Stainless steel AISI 431
