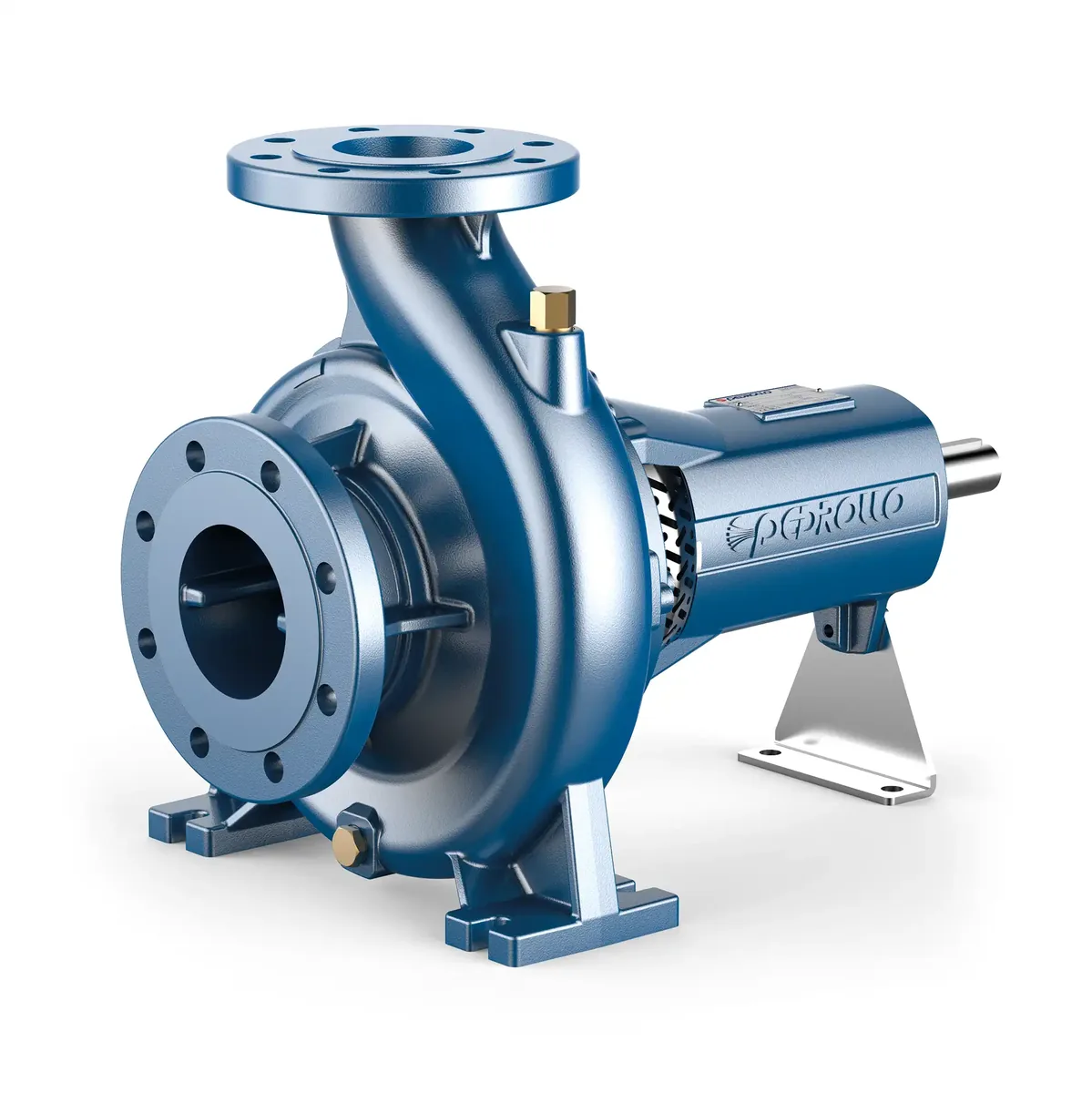

Pedrollo FG
- Model
- Pedrollo FG
EN 733 close-couple centrifugal pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo FG
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Flow Rate
- up to 5750 l/min (345 m³/h)
- Head Up
- up to 98 m
- Impeller
- Cast iron Brass (for FG 32/160-200, FG 40/125-160-200, FG 50/125-160)
- Liquid Temperature
- between -10 °C and +90 °C
- Manometric Suction Head
- up to 7 m
- Maximum Working Pressure
- 10 bar (PN10)
- Motor
- 2 poles FG2 4 poles FG4
- Pump Cover
- Cast iron
- Pump Housing
- Cast iron
- Shaft
- Stainless steel AISI 431
