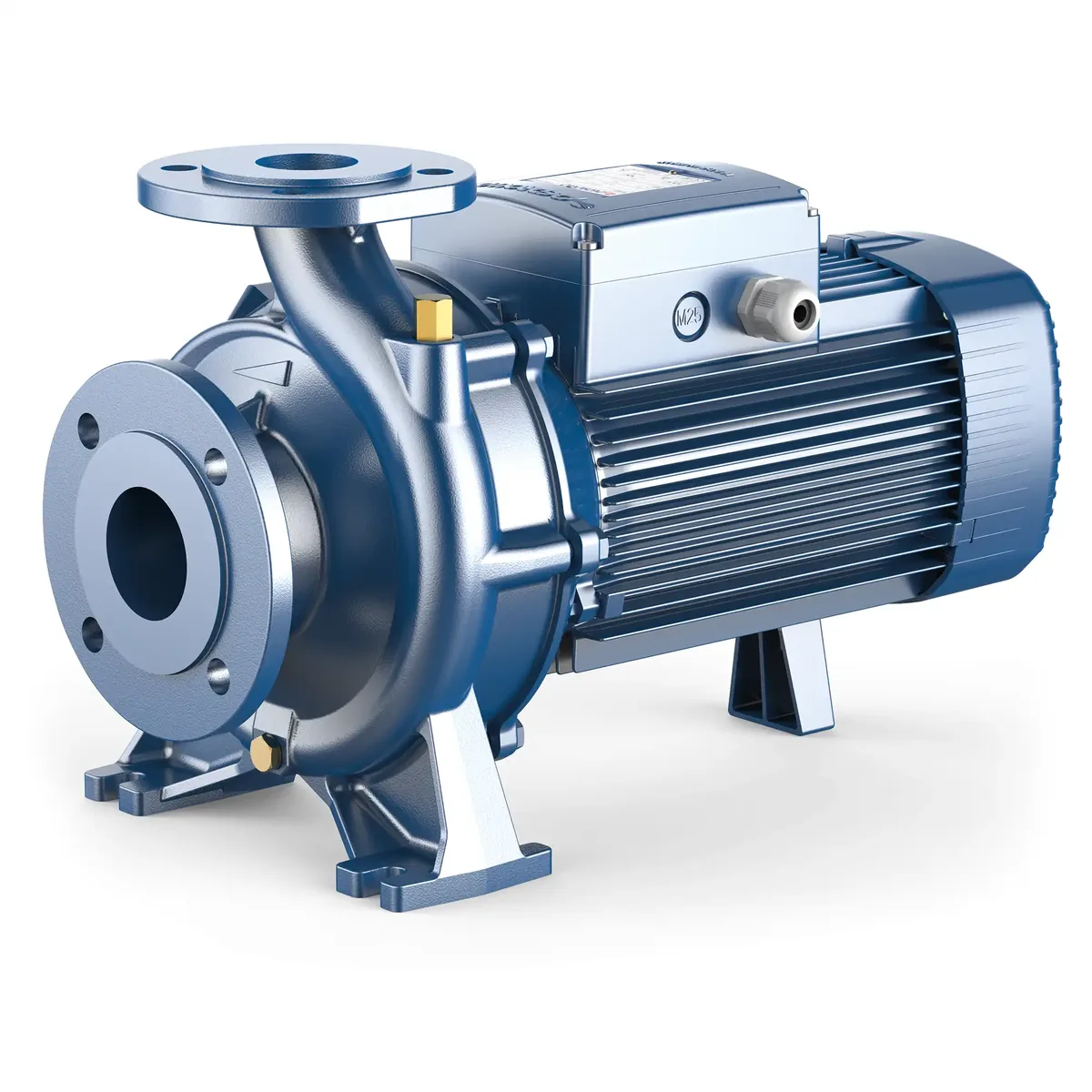

Pedrollo F4
- Model
- Pedrollo F4
EN 733 close-couple centrifugal pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo F4
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Ambient Temperature
- between -10 °C and +40 °C
- Flow Rate
- up to 2900 l/min (174 m³/h)
- Head Up
- up to 23.8 m
- Impeller
- Cast iron Brass (for F4 32/160-200, F4 40/160-200, F4 50/125-160)
- Ingress Protection Rating
- IP 55
- Liquid Temperature
- between -10 °C and +90 °C
- Manometric Suction Head
- up to 7 m
- Maximum Working Pressure
- 10 bar (PN10)
- Motor
- 4 poles
- Pump Cover
- Cast iron
- Pump Housing
- Cast iron
- Shaft
- Stainless steel AISI 431
