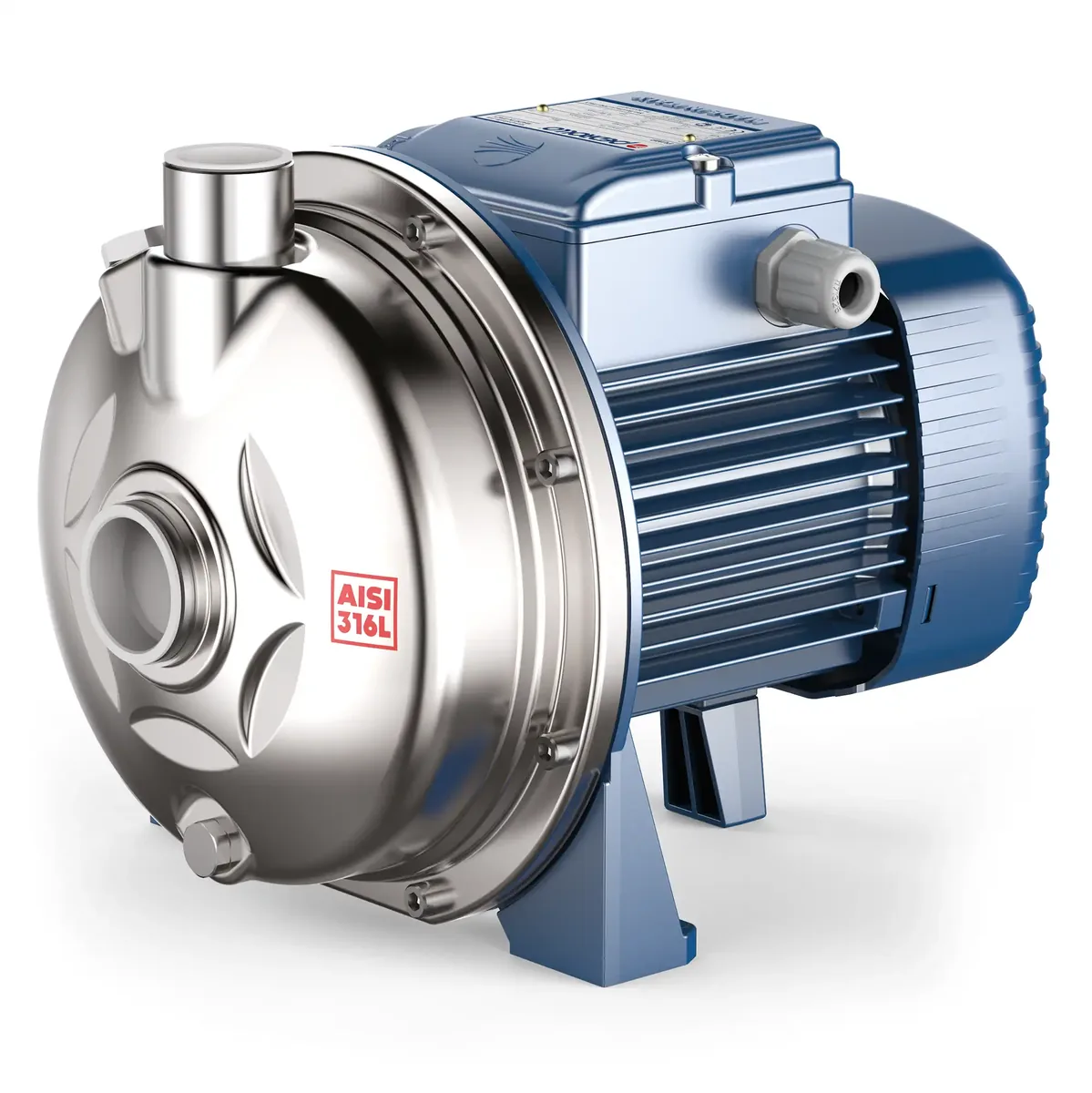

Pedrollo AL-RED 60 Hz
- Model
- Pedrollo AL-RED 60 Hz
Stainless steel centrifugal pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo AL-RED 60 Hz
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Ambient Temperature
- up to +40 °C
- Flow Rate
- up to 280 l/min (16.8 m³/h)
- Head Up
- up to 60 m
- Impeller
- Stainless steel AISI 304 (AL-RED -4) Stainless steel AISI 316L (AL-RED -6)
- Ingress Protection Rating
- IP X4
- Liquid Temperature
- between -10 °C and +90 °C
- Manometric Suction Head
- up to 7 m
- Maximum Working Pressure
- – 6 bar for AL-RED 600-610-620 – 8 bar for AL-RED 650-660-670-650M-660M-670M-650L-660L-670L
- Motor
- 2 poles
- Pump Cover
- Stainless steel AISI 304 (AL-RED -4) Stainless steel AISI 316L (AL-RED -6)
- Pump Housing
- Stainless steel AISI 304 (AL-RED -4) Stainless steel AISI 316L (AL-RED -6)
- Shaft
- Stainless steel AISI 431 (AL-RED -4) Stainless steel AISI 316L (AL-RED -6)
