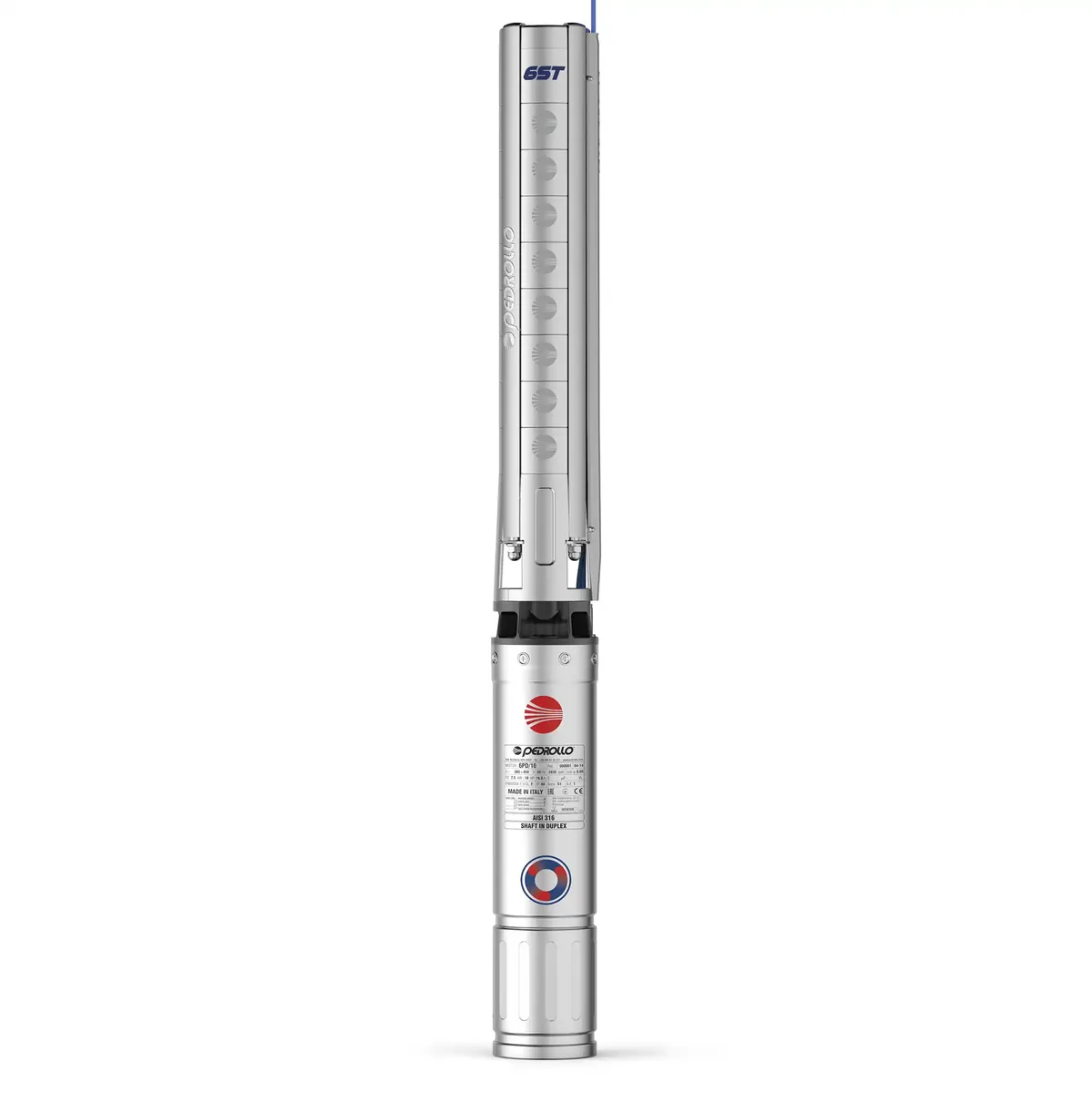

Pedrollo 6ST 17/10 Borehole submersible pumps
- Model
- Pedrollo 6ST 17/10 Borehole submersible pumps
Stainless-steel 6" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 6ST 17/10 Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/6ST_EN-datasheet_50Hz.pdf
- Delivery Port
- Stainless steel AISI 304
- Diffusers
- Stainless steel AISI 304
- Flow Rate
- up to1300 l/min (78 m³/h)
- Head
- up to 490 m
- Impellers
- Stainless steel AISI 304
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +40 °C
- Maximum Operating Depth Below Water Level
- – 200 m with 6PD motors – 150 m with 6PSR motors
- Maximus Sand Content
- 100 g/m3
- Motor
- 2 poles
- Motor Bracket
- Stainless steel AISI 304
- Official Data Row
- 6ST 17/10 5.5 7. 5 109 107 103 98 91 82 71 56.5 39
- Official Model
- 6ST 17/10
- Power
- 7.5 HP
- Rated Power
- 5.5 kW
- Shaft
- Stainless steel AISI 304
