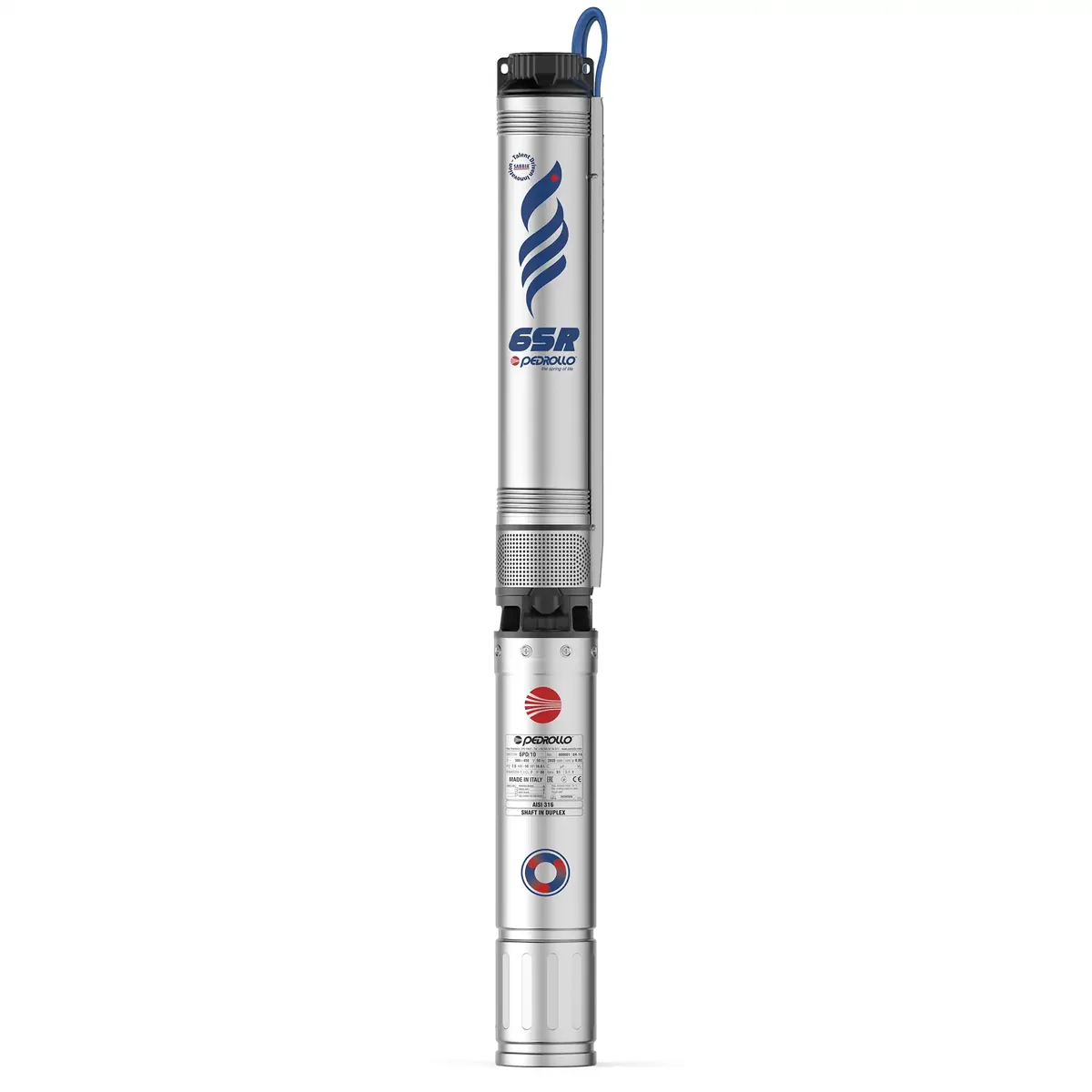

Pedrollo 6SR 36/5 Borehole submersible pumps
- Model
- Pedrollo 6SR 36/5 Borehole submersible pumps
6" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 6SR 36/5 Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/6SR_EN-datasheet_50Hz.pdf
- Delivery Port
- Cast iron
- Diffusers
- Noryl™
- Flow Rate
- up to 1000 l/min (60 m³/h)
- Head Up
- up to 390 m
- Impellers
- Noryl™ coated with special elastomer
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +35 °C
- Maximum Operating Depth Below Water Level
- – 200 m with 6PD motors – 150 m with 6PSR motors
- Maximus Sand Content
- 100 g/m3
- Motor
- 2 poles
- Motor Bracket
- Cast iron
- Official Data Row
- 6SR 36/5 5.5 7. 5 62.5 58.5 54.5 50.5 46 41 35 28.5 21
- Official Model
- 6SR 36/5
- Power
- 7.5 HP
- Pump Sleeve
- Stainless steel AISI 304
- Rated Power
- 5.5 kW
- Shaft
- Stainless steel AISI 304
