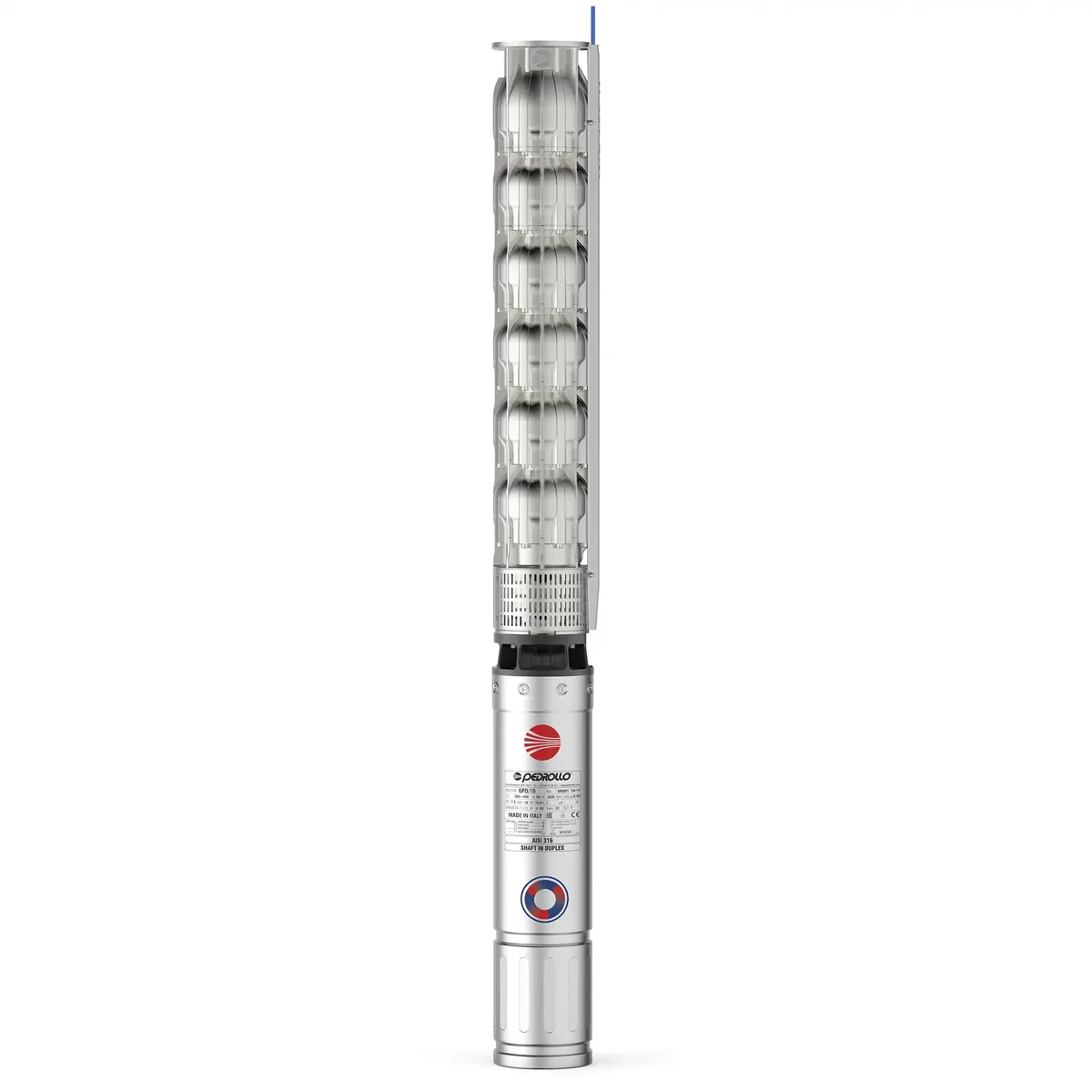

Pedrollo 6HR 34/4 Borehole submersible pumps
- Model
- Pedrollo 6HR 34/4 Borehole submersible pumps
Precision casted stainless-steel 6" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 6HR 34/4 Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/6HR_EN-datasheet_50Hz.pdf
- Delivery Port
- Precision casted stainless steel AISI 304
- Diffusers
- Precision casted stainless steel AISI 304
- Flow Rate
- up to 1500 l/min (90 m³/h)
- Head
- up to 375 m
- Impellers
- Precision casted stainless steel AISI 304
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +40 °C
- Maximum Operating Depth Below Water Level
- – 200 m with 6PD motors – 150 m with 6PSR motors
- Maximus Sand Content
- 100 g/m³
- Motor
- 2 poles
- Motor Bracket
- Precision casted stainless steel AISI 304
- Official Data Row
- 6HR 34/4 5.5 7. 5 55.5 53 51 49 46.5 43.5 39 33.5 25.5
- Official Model
- 6HR 34/4
- Power
- 7.5 HP
- Rated Power
- 5.5 kW
- Shaft
- Stainless steel AISI 304
