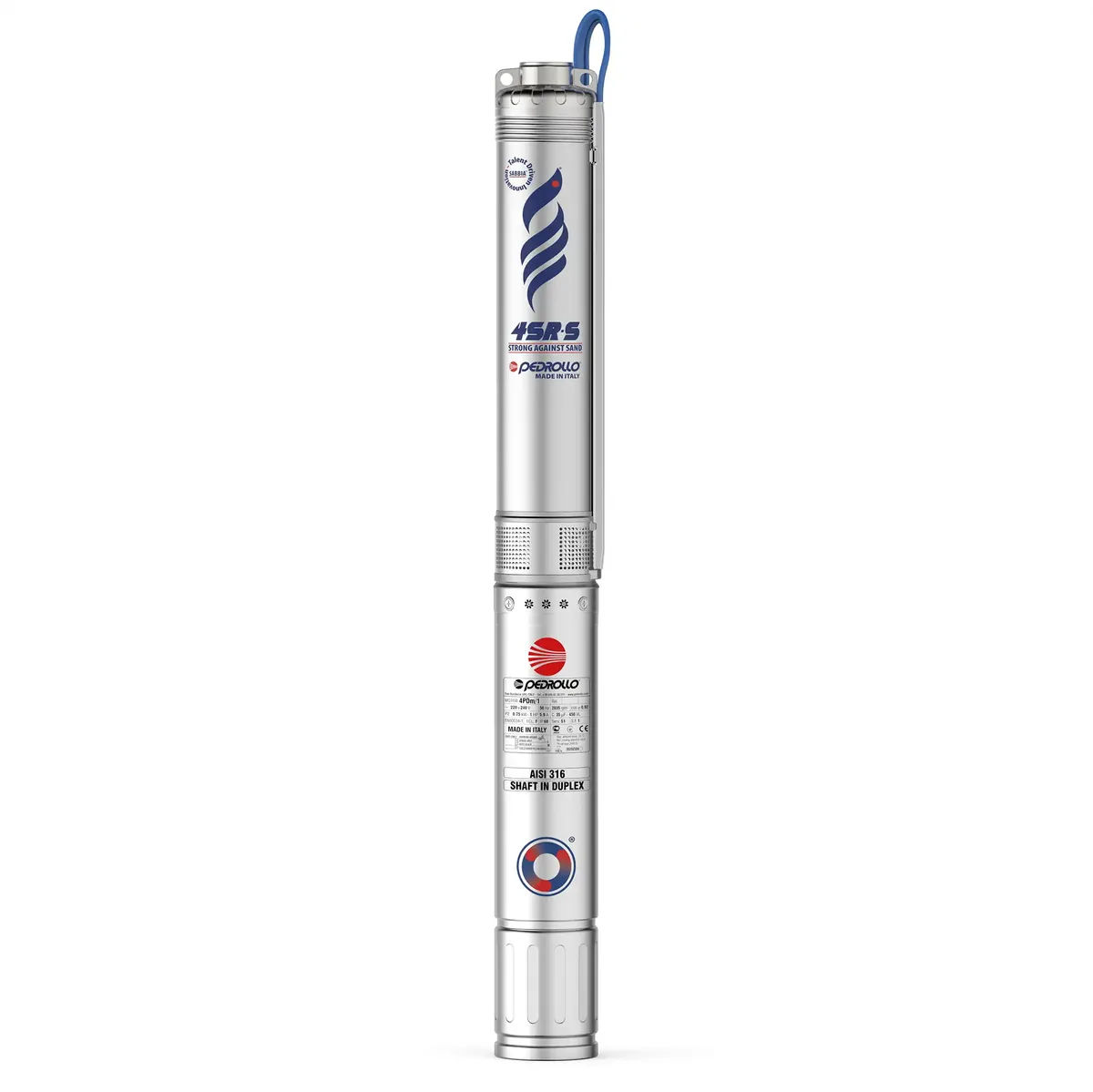

Pedrollo 4SR 10/5-N Borehole submersible pumps
- Model
- Pedrollo 4SR 10/5-N Borehole submersible pumps
4" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 4SR 10/5-N Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/4SR_EN-datasheet_50Hz.pdf
- Delivery Port
- Stainless steel AISI 304
- Diffusers
- Noryl™
- Flow Rate
- up to 350 l/min (21 m³/h)
- Head Up
- up to 576 m
- Impellers
- – Derlin® for 4SR-S – Noryl™ for 4SR-N
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +40 °C
- Maximum Operating Depth Below Water Level
- – 200 m with 4PD motors – 300 m with 4PS motors
- Maximus Sand Content
- – 200 g/m3 for 4SR-S – 150 g/m3 for 4SR-N
- Motor
- 2 poles
- Motor Bracket
- Stainless steel AISI 304
- Official Data Row
- 4SRm 10/5 - N 4SR 10/5 - N 0.75 1
- Official Model
- 4SR 10/5-N
- Power
- 1 HP
- Pump Sleeve
- Stainless steel AISI 304
- Rated Power
- 0.75 kW
- Shaft
- Stainless steel AISI 304
