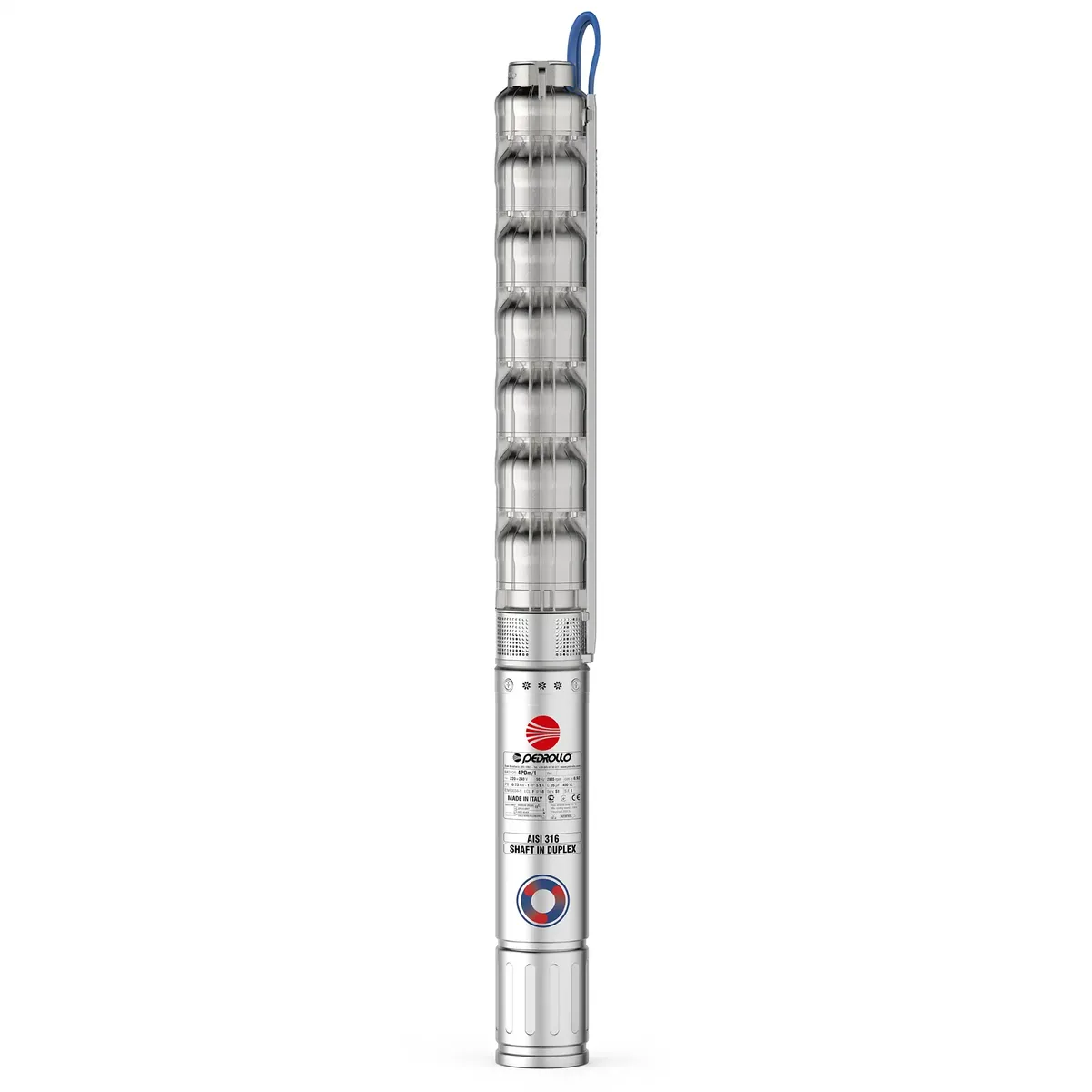

Pedrollo 4HRm 18/9 Borehole submersible pumps
- Model
- Pedrollo 4HRm 18/9 Borehole submersible pumps
Precision casted stainless-steel 4" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 4HRm 18/9 Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/4HR_EN-datasheet_50Hz.pdf
- Delivery Port
- Precision casted stainless steel AISI 304
- Diffusers
- Precision casted stainless steel AISI 304
- Flow Rate
- up to 420 l/min (25.2 m³/h)
- Head Up
- up to 176 m
- Impellers
- Precision casted stainless steel AISI 304
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +40 °C
- Maximum Operating Depth Below Water Level
- – 200 m with 4PD motors – 300 m with 4PS motors
- Maximus Sand Content
- 100 g/m3
- Motor
- 2 poles
- Motor Bracket
- Precision casted stainless steel AISI 304
- Official Data Row
- 4HRm 18/9 4HR 18/9 2.2 3 52.5 50 47. 5 44.5 40.5 36 30.5 23.4 14.8 11
- Official Model
- 4HRm 18/9
- Power
- 3 HP
- Rated Power
- 2.2 kW
- Shaft
- Stainless steel AISI 304
