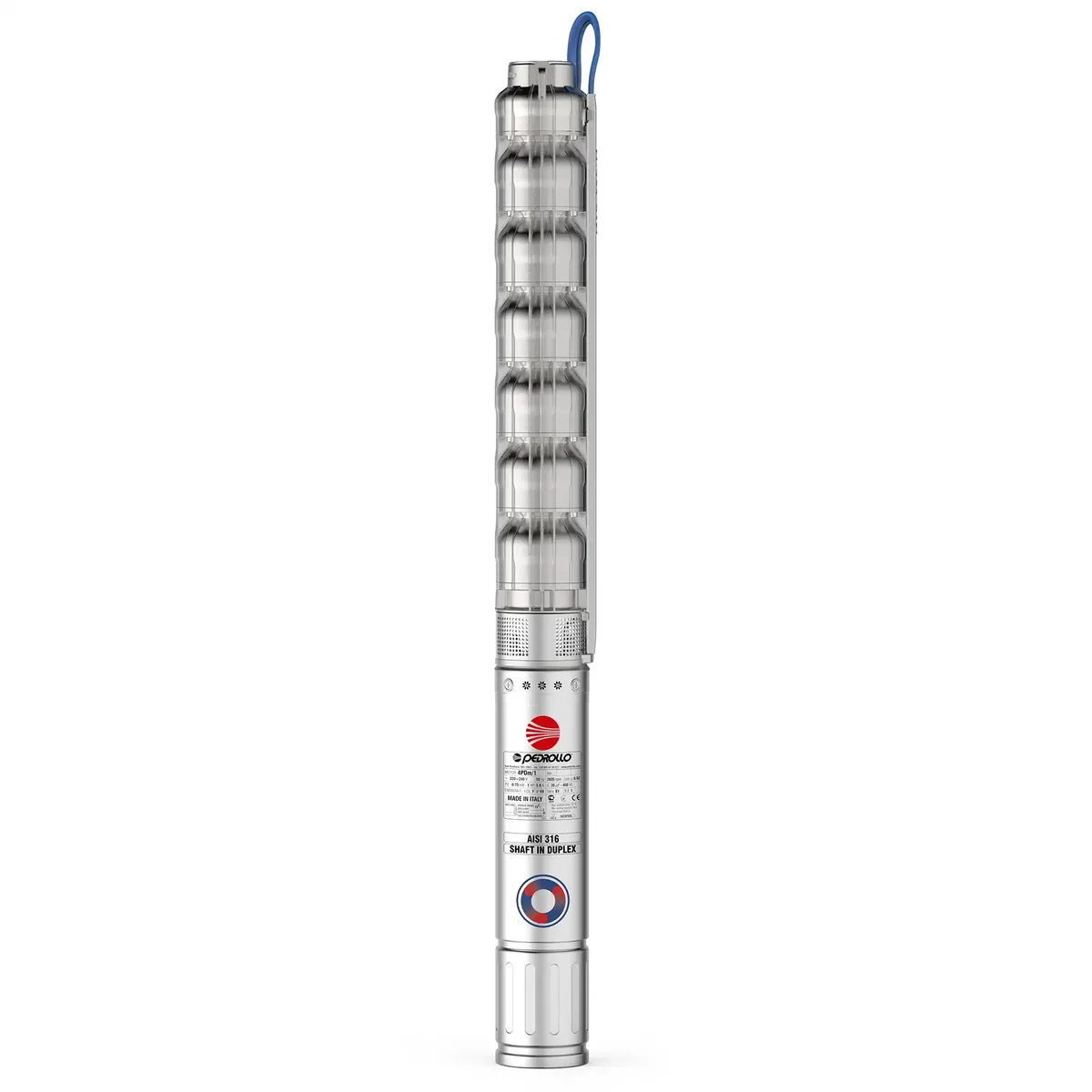

Pedrollo 4HRm 14/6-PD Borehole submersible pumps
- Model
- Pedrollo 4HRm 14/6-PD Borehole submersible pumps
Precision casted stainless-steel 4" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 4HRm 14/6-PD Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/4HR_EN-datasheet_50Hz.pdf
- Delivery Port
- Precision casted stainless steel AISI 304
- Diffusers
- Precision casted stainless steel AISI 304
- Flow Rate
- up to 420 l/min (25.2 m³/h)
- Head Up
- up to 176 m
- Impellers
- Precision casted stainless steel AISI 304
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +40 °C
- Maximum Operating Depth Below Water Level
- – 200 m with 4PD motors – 300 m with 4PS motors
- Maximus Sand Content
- 100 g/m3
- Motor
- 2 poles
- Motor Bracket
- Precision casted stainless steel AISI 304
- Official Data Row
- 4HRm 14/6 - PD 584 396 980 20.5 4HRm 14/6 - PS 584 312 896 22.0
- Official Model
- 4HRm 14/6-PD
- Shaft
- Stainless steel AISI 304
