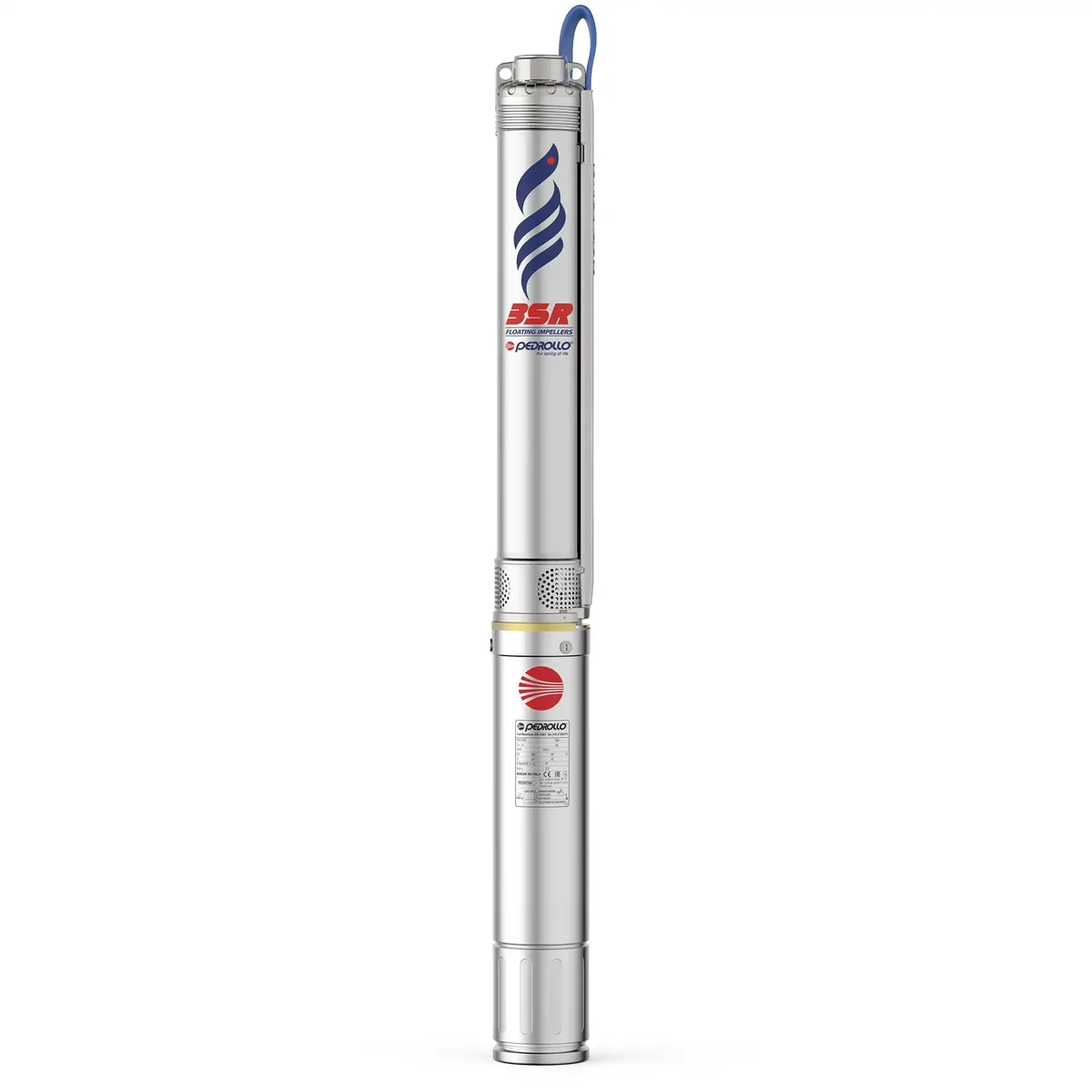

Pedrollo 3SR 4/12 Borehole submersible pumps
- Model
- Pedrollo 3SR 4/12 Borehole submersible pumps
3" submersible borehole pumps
StockIn stock
PriceAsk on WhatsApp
Confirm the model, specifications and quantity.
Ask on WhatsAppOverview
- Model
- Pedrollo 3SR 4/12 Borehole submersible pumps
- Brand
- Pedrollo
- Category
- Water pumps
Specifications
- Datasheet
- https://www.pedrollo.com/wp-content/uploads/schede-tecniche/EN/3SR_EN-datasheet_50Hz.pdf
- Delivery Port
- Stainless steel AISI 304
- Diffusers
- Noryl™
- Flow Rate
- up to 120 l/min (7.2 m³/h)
- Head
- up to 267 m
- Impellers
- – Derlin® for 3SR 1-2-4 – Noryl™ for 3SR 5
- Ingress Protection Rating
- IP 68
- Liquid Temperature
- up to +40 °C
- Maximum Operating Depth Below Water Level
- 70 m
- Maximus Sand Content
- 150 g/m³
- Motor
- 2 poles
- Motor Bracket
- Precision casted stainless steel AISI 304
- Official Data Row
- 3SRm 4/12 3SR 4/12 0.55 0.75 43.5 43.5 43.5 42.5 41 38.5 34.5 28.5 20.9 11
- Official Model
- 3SR 4/12
- Power
- 0.75 HP
- Pump Sleeve
- Stainless steel AISI 304
- Rated Power
- 0.55 kW
- Shaft
- Stainless steel AISI 304
